Detalhes do produto:
|
| Tamanho do painel: | 5,7 polegadas | Resolução: | 320×240 |
|---|---|---|---|
| Tipo de painel: | STN-LCD | Área ativa: | 115.18×86.38 milímetro |
| esboço: | 144×104.8×13.2 milímetro | superfície: | Brilho (embaçamento 0%) |
| freqüência: | 75HZ | ||
| Realçar: | industrial lcd screen,industrial lcd panel |
||

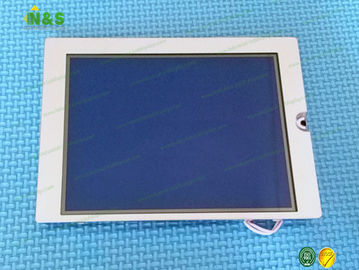

KG057QV1CA-G020W 5.7 inch resolution 320×240 Active Area 115.18×86.38 mm Surface Glare (Haze 0%)
KG057QV1CA-G020W Basic Information
| Panel Model | KG057QV1CA-G020W |
| Panel Brand | Kyocera |
| Descrition | STN-LCD ,5.7 inch, 320×240 |
| Panel Type | STN-LCD |
KG057QV1CA-G020W Mechanical Features
| Dot Resolution | 320×240 (QVGA) |
| Pixel Configuration | Rectangle |
| Pixel Density | 70 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.360×0.360 mm (H×V) |
| Pixel Pitch | 0.360×0.360 mm (H×V) |
| Weight | 175g |
| Surface | Glare (Haze 0%) |
| Active Area | 115.18×86.38 mm (H×V) |
| Bezel Area | 119.4×90.6 mm (H×V) |
| Outline Dimension | 144×104.8 mm (H×V) |
| Outline Depth | 9.0/13.2 (Typ./Max.) mm |
| Holes & Brackets | Rear mounting poles (4-Φ2.6) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
KG057QV1CA-G020W Optical Features
| Display Mode | STN, Blue mode (Negative), Transmissive |
| Brightness | 260 cd/m² (Typ.) |
| Contrast Ratio | 4 : 1 (Typ.) (Transmissive) |
| Display Color | Monochrome () |
| Response Time | 380/120 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥2) (L/R/U/D) |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| Sunlight Readable | N |
BOE BP080WX7-100 Optical Features
Display Mode : HFFS, Normally Black, Transmissive
Brightness : 0 cd/m²
Contrast Ratio : 900 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 55% NTSC (CIE1931)
Response Time : 24 (Typ.)(Tr+Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.301; Wy:0.321
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| C-51847NFJ-SLW-AFN | Kyocera | 98.5×61 | |
| C-51847NFJ-SLW-AEN | Kyocera | 98.5×61 | |
| C-51847NFJ-SLW-ADN | Kyocera | 98.5×61 | |
| DMC-20261NY-LY-CME-CPN | Kyocera | 116×37 | |
| DMC-20261NYJ-LY-CKE-CNN | Kyocera | 116×37 | |
| DMC-16230NY-LY-EEE-EGN | Kyocera | 122×44 | |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 84×45 | |
| C-51850NFJ-SLW-ADN | Kyocera | 182×34.5 | |
| C-51505NFQJ-LG-AKN | Kyocera | 116×37 | |
| C-51505NFQJ-LW-ALN | Kyocera | 116×37 | |
| C-51505NFQJ-LB-AJN | Kyocera | 116×37 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
