Detalhes do produto:
|
| Tipo de painel: | Um-Si TFT LCD | Tamanho do painel: | 12,1 polegadas |
|---|---|---|---|
| Resolução: | 1024×768 | esboço: | 261×198×5 milímetro |
| Rácio de contraste: | 500:1 (tipo.) | freqüência: | 60 hz |
| Realçar: | industrial touch screen display,industrial lcd panel |
||

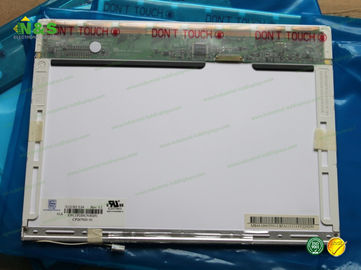

12.1 inch N121X5-L04 TFT LCD Module resolution 1024×768 Outline 261×198×5 mm Frequency 60Hz
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| H497DAN02.0 | AUO | 5.0" | 1080×1920 |
| H495TAN01.1 | AUO | 5.0" | 720×1280 |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| ST2751A01-6 | CSOT | 27.5" | 1366×768 |
| H496TAN01.0 | AUO | 5.0" | 720×1280 |
| H545QAN01.0 | AUO | 5.5" | 1440×2560 |
| TM050JYSP01 | Tianma | 5.0" | 720×1280 |
| LH500M01-SH02 | LG Display | 5.0" | 540×960 |
| LH500WX5-SH01 | LG Display | 5.0" | 720×1280 |
| LH500WX9-SH01 | LG Display | 5.0" | 720×1280 |
| P089DCZ-3A1 | Innolux | 8.9" | 800×1280 |
| BS050HDE-N41-6Q00 | BOE | 5.0" | 720×1280 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
N121X5-L04 Basic Information
| Panel Model | N121X5-L04 |
| Panel Brand | CMO |
| Descrition | a-Si TFT-LCD ,12.1 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N121X5-L04 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 105 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.080×0.240 mm (H×V) |
| Pixel Pitch | 0.240×0.240 mm (H×V) |
| Weight | 240g (Typ.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 245.76×184.32 mm (H×V) |
| Bezel Area | 250.5×188.9 mm (H×V) |
| Outline Dimension | 261×198 mm (H×V) |
| Outline Depth | 4.7/5.0 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (6-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N121X5-L04 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 175 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 5/11 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Max.)(5 points) |
| Sunlight Readable | N |
