Detalhes do produto:
|
| Tamanho do painel: | 5,7 polegadas | Área ativa: | 115.2×86.4 milímetro |
|---|---|---|---|
| Resolução: | 500:1 (tipo.) | Cores da exposição: | 262K (6-bit) |
| Realçar: | industrial touch screen display,industrial lcd panel |
||

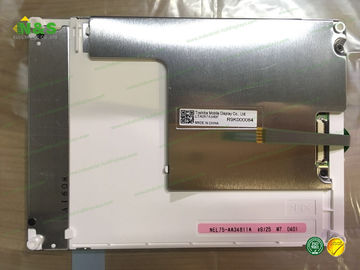

Normally White LTA057A349F Toshiba 5.7 inch resolution 320×240 Industrial LCD Displays Contrast Ratio500:1 (Typ.)
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
LTA057A349F Basic Information
| Panel Model | LTA057A349F |
| Panel Brand | Toshiba Matsushita |
| Descrition | a-Si TFT-LCD ,5.7 inch, 320×240 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
LTA057A349F Mechanical Features
| Dot Resolution | 320(RGB)×240 (QVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 70 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.120×0.360 mm (H×V) |
| Pixel Pitch | 0.360×0.360 mm (H×V) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 115.2×86.4 mm (H×V) |
| Bezel Area | 119.0×90.2 mm (H×V) |
| Outline Dimension | 144×104.6 mm (H×V) |
| Outline Depth | 9.5±0.5 mm |
| Holes & Brackets | Side mounting holes (4-Φ1.6); Rear mounting Pole (4-Φ2.6); Face mounting holes (2 pcs) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Embeded (4-wire Resistive) |
LTA057A349F Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 320 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.320; Wy:0.340 |
| White Variation | 1.43/1.67 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| P101NWT4 R0 | IVO | 10.1" | 1024×600 |
| HSD055FMW1-D00 | HannStar | 5.5" | 540×960 |
| BP080WX7-200 | BOE | 8.0" | 800×1280 |
| HV280WX2-280 | BOE | 27.5" | 1366×768 |
| LB164WH1-SJA1 | LG Display | 16.4" | 1366×238 |
| LSN133AT01-803 | Samsung | 13.3" | 1366×768 |
| M215HJJ-P02 | Innolux | 21.5" | 1920×1080 |
| M200HJJ-P01 | Innolux | 19.5" | 1920×1080 |
| HSD050FHW3-D00-T00 | HannStar | 5.0" | 720×1280 |
