Detalhes do produto:
|
| Tipo de painel: | Um-Si TFT LCD | Tamanho do painel: | 8,9 polegadas |
|---|---|---|---|
| Resolução: | 1024×600 | Cores da exposição: | 262K (6-bit) |
| esboço: | 213.36×129.55×5.45 milímetro | superfície: | Revestimento antiofuscantes, duros (3H) |
| Realçar: | industrial touch screen display,industrial lcd screen |
||

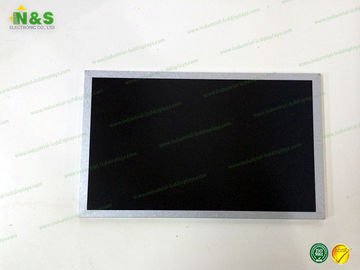

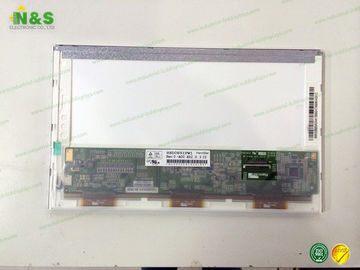

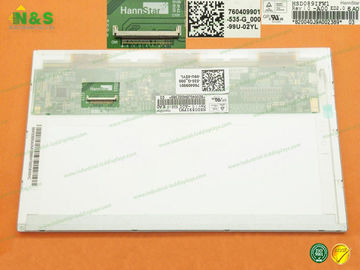

Normally White HSD089IFW1-A00 TFT LCD Module HannStar 8.9 inch resolution 1024×600 Contrast Ratio 500:1 (Typ.)
HSD089IFW1-A00 Basic Information
| Panel Model | HSD089IFW1-A00 |
| Panel Brand | HannStar |
| Descrition | a-Si TFT-LCD ,8.9 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
HSD089IFW1-A00 Mechanical Features
| Dot Resolution | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 133 PPI |
| Aspect Ratio | 17:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0635×0.1890 mm (H×V) |
| Pixel Pitch | 0.1905×0.1890 mm (H×V) |
| Weight | 200/215g (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 195.072×113.4 mm (H×V) |
| Bezel Area | 198.27×116.6 mm (H×V) |
| Outline Dimension | 213.36×129.55 mm (H×V) |
| Outline Depth | 5.15/5.45 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
HSD089IFW1-A00 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| White Variation | 1.43 (Max.)(9 points) |
| Sunlight Readable | N |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAF047LC41 TXX | CPT | 4.7" | 540×960 |
| CLAG040LQ11 | CPT | 4.0" | 480×800 |
| C047SWA1-0 | IVO | 4.7" | 720×1280 |
| LC420DUJ-SGE3 | LG Display | 42" | 1920×1080 |
| HSD050BMW2-D00 | HannStar | 5.0" | 540×960 |
| C101NWWB-0 | IVO | 10.1" | 1280×800 |
| HSD035F8W2-A00 | HannStar | 3.5" | 480×854 |
| CLAG045LJ11 | CPT | 4.5" | 480×854 |
| CLAD027GJ01 00XD | CPT | 2.7" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
