Detalhes do produto:
|
| Tipo de painel: | Um-Si TFT LCD | Tamanho do painel: | 8,4 polegadas |
|---|---|---|---|
| Resolução: | 800×600 | superfície: | Antiofuscante |
| esboço: | 203×142.5 milímetro | Tensão de entrada: | 3.3V (tipo.) |
| Realçar: | industrial touch screen display,industrial lcd screen |
||

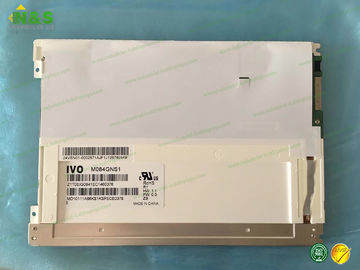

New and original 15.0 inch M084GNS1 R1 TFT LCD Module IVO Active Area 170.4×127.8 mm Contrast Ratio 600:1 (Typ.)
M084GNS1 R1 Basic Information
| Panel Model | M084GNS1 R1 |
| Panel Brand | IVO |
| Descrition | a-Si TFT-LCD ,8.4 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
M084GNS1 R1 Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 119 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.071×0.213 mm (H×V) |
| Pixel Pitch | 0.213×0.213 mm (H×V) |
| Weight | 200g (Typ.) |
| Surface | Antiglare |
| Active Area | 170.4×127.8 mm (H×V) |
| Bezel Area | 173.4×131.2 mm (H×V) |
| Outline Dimension | 203×142.5 mm (H×V) |
| Outline Depth | 5.7 (Typ.) mm |
| Holes & Brackets | Face mounting holes (4 pcs) on left, right bezel |
| Touch Panel | Without |
M084GNS1 R1 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 12 o'clock |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TV070WSU-N40 | BOE | 7.0" | 600×1024 |
| LS320PUWTH | PANDA | 31.5" | 1366×768 |
| TT4851D01-4 | CSOT | 49" | 3840×2160 |
| ST4761B01-6 | CSOT | 48" | 1920×1080 |
| LC420EGY-SGM1 | LG Display | 42" | 3840×2160 |
| H466TAN01.4 | AUO | 4.7" | 720×1280 |
| BF045WVE-400 | BOE | 4.5" | 480×854 |
| LC430DUY-SHA1 | LG Display | 43" | 1920×1080 |
| HSD047BMW1-D00 | HannStar | 4.7" | 540×960 |
| HSD070FMW1-A00 | HannStar | 7.0" | 540×960 |
