Detalhes do produto:
|
| Tipo de painel: | Um-Si TFT LCD | Tamanho do painel: | 15,0 polegadas |
|---|---|---|---|
| Área ativa: | 304.1×228.1 milímetro | esboço: | 350×266.5 milímetro |
| superfície: | Antiofuscante | ||
| Realçar: | industrial touch screen display,industrial lcd screen |
||

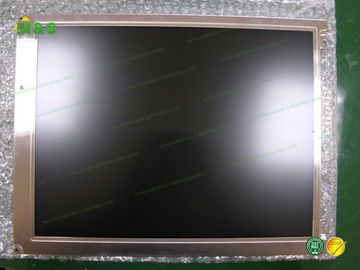

Normally White CLAA150XA03 CPT 15.0 inch Active Area 304.1×228.1 mm Surface Antiglare Frequency 60Hz new and original
CLAA150XA03 Basic Information
| Panel Model | CLAA150XA03 |
| Panel Brand | CPT |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Optical Compenation Film |
CLAA150XA03 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 1.30Kgs (Typ.) |
| Surface | Antiglare |
| Active Area | 304.1×228.1 mm (H×V) |
| Bezel Area | 308.1×232.1 mm (H×V) |
| Outline Dimension | 350×266.5 mm (H×V) |
| Outline Depth | 14.5 (Typ.) mm |
| Holes & Brackets | Face mounting holes (3-Φ3.5, 2-R1.57) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
CLAA150XA03 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 350 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Response Time | 13/27 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/45/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.310; Wy:0.328 |
| White Variation | 1.30 (Max.)(5 points) |
| Sunlight Readable | N |
